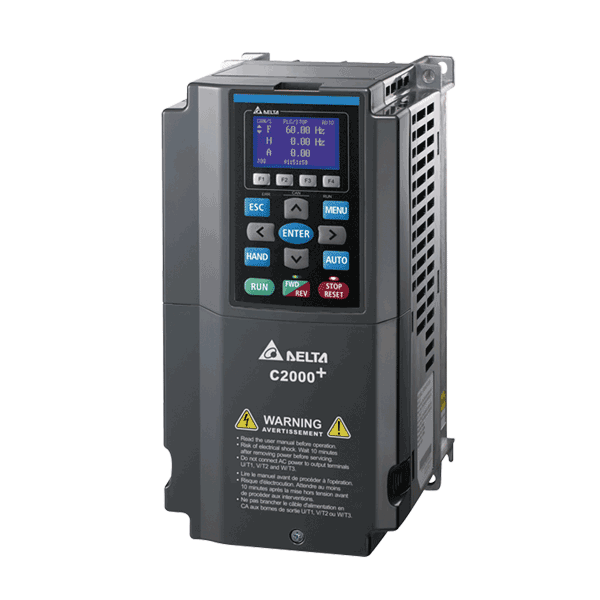

Hjem / Produkter / Automatisering og motorkontrol / Frekvensomformere / C2000+ 022C4EA-21 Frekvensomformer
C2000 Plus 3-phase 400 V IP21
2,2 kW 6,0 A
Artikel nummer:
127543
Desværre udsolgt
C2000 Plus-serien har præcise hastigheds-, moment- og positionskontrol funktioner, der er velegnede til både sensor- og sensorløse typer synkrone og asynkrone motorer.
| Technical specification | |
|---|---|
| Input voltage (VAC) | 380-480 |
| Max input voltage (VAC) | 3x340-500 |
| IP class | 21 |
| Rated output capacity (kVA) | 7,2 |
| Applicable motor output (kW), normal duty | 2,2 |
| Voltage out (V) | 3x0-340/500 |
| Manufacturer | Delta |
| Product series | C2000 Plus |
| Input rating | |
| Operating voltage range | 3-fas 323-528 VAC |
| Output rating | |
| Frequency modulation | PWM-modulering, kopplingsfrekvens 1-15 kHz (storleksberoende) |
| Frequency output accuracy | Digital referens: ±0,01 %, Analog referens: ±0,1 % |
| Overload capacity | 150 % av märkström under 1 minut. |
| Acceleration / Deceleration time | 0,0~6000 sek. |
| Control method | IMVF, IM/PM/IPM, IM/PM SVC, IM/PM FOC, SynRM, IM/PM TQCPG, IM/SynRM TQC |
| Speed control range | PMSVC 1:20, IMVF/IMSVC/PM 1:50, IM/PM FOC 1:100, IM/PM FOC+PG 1:1000 |
| Torque function | IM/SynRM TQC sensorless, IM/PM TQCPG |
| V/F curve | V/F-kontroll med valfri V/Hz-inställning. |
| Current limit | 195 % av in. Absolutskydd 250 %. |
| Standard functions | |
| Control signal OP panel | Inställning med pilar upp/ned. |
| Control signal external signal | -10~ +10 VDC, 0~ +10 VDC (impedans 20 kΩ), 4-20 mA (impedans 250 Ω), pulståg 100 kHz, JOG, potentiometer -5 kΩ/0,5 W, RS485-seriekommunikation (MODBUS, CANopen), 16 fasta hastigheter, positionering (15-positioner), UPP/NED-kommando, pulståg (PG-optionkort) |
| Start signal OP panel | Sätts med RUN/STOP-knapparna |
| Start signal external signal | FWD/STOP, REV/STOP (RUN/STOP, FWD/REV), 3-ledarstyrning, RS485-seriekommunikation (MODBUS, CANopen) |
| Multi-function digital input | M1-M8 är programmerbara multifunktionskontakter, 16 fasta hastigheter, JOG, öka/minska-kommando, val alternativ accelerations-/retardationstid, timer, PID, klockfunktion, extern |
| Multi-function digital output | Driftsignal, inställd frekvens uppnådd, 0-varvsindikering, |
| Analog output signal | 0-10 VDC/4-20 mA. Indikering av referens/utfrekvens/ström/spänning/moment/effekt etc. |
| Other | |
| Braking chopper | Integrerad bromsmodul |
| DC choke | Option |
| EMC filter | Integrated EMC-filter |
| Cooling | Inbyggd forcerad kylning |
| Manufacturer | Delta |
| Environment | |
| Installation | Höjd: max. 1000 m ö.h. Ej korrosiva gaser. Undvik damm och fukt. |
| Ambient temperature | -10°C - +50°C (icke kondenserande) |
| Storage temperature | -20°C - +60°C |
| Ambient humidity | Max. 90 %RH (icke kondenserande) |
| Vibration | 1,0 mm peak-to-peak 2-13,2 Hz: 1,0 G 55-512 Hz, enligt IEC60068-2-6 |
| Dimensions and weight | |
| Width × height × depth (mm) | 130x250x170 |
| Net weight (kg) | 2,6 |
The C2000 Plus series features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors.
With higher overload capacity, the power range of C2000 Plus series 460 V models reach up to 560 kW, providing the best performance and stability for a variety of heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal & infrastructure and other industries.
For advanced manufacturing, the C2000 Plus Series is equipped with built-in PLC functions and support various protocols for the ultimate in system flexibility and fast data exchange.
| Manufacturer | Delta Electronics |
The wiring diagram will be added within short.
