SIEMENS SITRANS FM
5100W & MAG 5000/6000

Reliable Flow Measurement for Water Applications

The SITRANS FM MAG 5100W is a high-performance flow meter sensor developed for all types of water applications. With its patented internal coatings of rubber (NBR or ebonite) and EPDM, it ensures long service life and high resistance to wear.

The sensor is designed to handle both clean and contaminated water flows, making it ideal for applications such as drinking water, wastewater, and irrigation systems. When combined with a SITRANS transmitter, it provides accurate and stable measurement even under harsh conditions.

Home / Products / Flow Meters / SIEMENS SITRANS FM 5100W & MAG 5000/6000

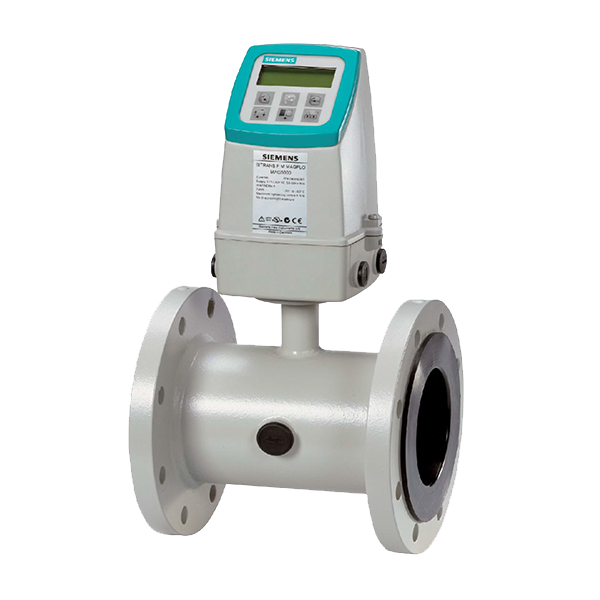

Sensor MAG 5100W
(Pipe Section)

Flexible and Reliable Flow Measurement

The SITRANS FM portfolio offers an integrated platform that enables flexible use of the transmitters MAG 5000 and 6000 together with all sensors in the series, including MAG 5100, 3100, and 1100. With the unique SensorProm technology, critical, sensor-specific data is stored and automatically transferred to the transmitter, making commissioning simple and smooth.

The system is designed for maximum user-friendliness with Plug & Play functionality, allowing quick replacement and installation on-site within minutes. The transmitters are also "hot-swappable," meaning they can be replaced during operation without disrupting the process. Due to its mounting flexibility, they can be installed in both compact and separate configurations, depending on the application’s needs.

To ensure the highest possible measurement accuracy, each Siemens flow meter is calibrated at individually accredited facilities according to ISO/IEC 17025. The system is also designed for easy service and diagnostics, with the ability for on-site verification through the SITRANS FM Verificator, ensuring reliable measurement results over time.


Features and Benefits

  • DN 15 to DN 2000 (½" to 80")
  • The standard MAG 5100 W program ensures quick delivery
  • Connection flanges according to EN 1092-1 (DIN 2501), ANSI, AWWA, AS, and JIS
  • NBR rubber lining for all water and wastewater applications
  • EPDM lining with drinking water approvals
  • Integrated grounding and measurement electrodes
  • Improved accuracy at low flow rates for detecting water leaks thanks to conical lining
  • Drinking water approvals
  • Suitable for direct burial and continuous flooding
  • Approved for cold water billing and energy measurement (MI-001, KIWA, NMI M10, PTB K7.2)
  • Built-in length according to ISO 20456; the standard covers sizes up to DN 400
  • Easy commissioning, SENSORPROM device automatically uploads calibration values and settings
  • Designed to enable patented in-situ verification with SENSORPROM fingerprint
  • Qualified for operation in non-optimal installation conditions without straight inlet and outlet (0 × DN)
  • Compliant with ISO 4064 and EN 14154 for mechanical flow meters
  • FM Fire Service Meter (Class number 1044) for automatic fire protection systems
  • Meets EEC Directive PED 2014/68/EU
  • Easy upgrade on-site or from the factory to IP68/NEMA 6P for a standard sensor
  • Type approved for marine equipment (DNV)

Features

  • Measurement Range
    0 to 10 m/s
  • Accuracy
    0.2% ±2.5 mm/s
  • Operating Pressure
    Max. 16 bar (Max. 150 psi)
  • Ambient Temperature
    From -40 to 70 °C (-40 to 158 °F)
  • Medium Temperature
    From -10 to 70 °C (14 to 158 °F)


Design

  • Nominal Sizes
    From DN 15 to DN 2000 (1" to 78")
  • Internal Coatings
    EPDM,
    NBR rubber,
    Ebonite rubber
  • Electrodes
    Hastelloy C-276,
    integrated grounding electrodes
  • Material
    Carbon steel with corrosion-resistant two-component epoxy coating


Approvals

  • Drinking Water Approvals
    EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, ACS, and BelgAqua
    NBR: NSF/ANSI Standard 61, WRAS
    Ebonite: WRAS
  • Approvals for Legal Measurement (Custody Transfer)
    OIML R 49
    MI-001
    PTB K7.2 (Germany)
    BEV OE12/C040 (Austria)
  • General Approval
    MCERTS Sira Certificate No. MC080136/09

Accessories

  • MAG 5000 Transmitter (Electronics unit) 230VAC
  • MAG 5000 Transmitter (Electronics unit) 24VDC
  • MAG 6000 Transmitter (Electronics unit) 230VAC
  • MAG 6000 Transmitter (Electronics unit) 24VDC
  • Wall Mounting Bracket with Outlet Box
  • Standard Electrode & Coiled Cable 20m
  • IP68 Sylgard (for underground installation)
  • Special Electrode Cable 20m
  • Cable Kit Standard + Special 5m
  • Cable Kit Standard + Special 10m
  • Cable Kit Standard + Special 15m
  • Cable Kit Standard + Special 20m
  • Cable Kit Standard + Special 25m
  • Cable Kit Standard + Special 30m
  • PROFIBUS PA Module
  • PROFIBUS DP Module
  • MODBUS RTU RS485 Module
  • G1/2" MAG1100 DN2-10 Stainless Steel Connection
  • G1/2" MAG1100 DN2-10 Hastelloy Connection
  • G1/2" MAG1100 DN2-10 PVDF Connection
  • Outlet Box Cover
  • Sensorprom MAG 2kB
  • Contact Plate


Document links

Transmitter MAG 5000/6000 (Electronics Unit)

MAG 5000 and MAG 6000 are transmitters designed for high performance

The meter is built with easy installation, commissioning, and maintenance in mind. The transmitters evaluate signals from SITRANS FM sensors MAG 1100, MAG 1100 F, MAG 3100, MAG 3100 P, and MAG 5100 W.


Transmitter Types

  • MAG 5000
    Maximum measurement error ± 0.4% ± 1 mm/s (including sensor)
  • MAG 6000
    Maximum measurement error ± 0.2% ± 1 mm/s (including sensor, see also sensor specifications)
    Additional features such as dosing function, "plug & play" for communication bus modules, and integrated batch functions.


Features and Benefits

  • Cost-effective transmitter with high performance
  • Robust transmitter, suitable for universal applications with high measurement accuracy
  • Multiple functional outputs for process control
  • Display and keypad available in multiple languages
  • SITRANS FM portfolio – our integrated platform allows flexible use of the MAG 5000/6000 transmitter with all products (MAG 5100/3100/1100)
  • Unique SensorProm technology – stores critical sensor-specific data and transfers it to the transmitter, enabling easy and flexible sensor commissioning
  • Plug & Play – allows for easy replacement and commissioning of the transmitter on-site in just a few minutes
  • "Hot swappable" – can be replaced during operation
  • Flexible mounting – allows for both compact and remote installation
  • Validated calibration ensures accurate flow measurement. Each Siemens flow meter is calibrated in facilities individually accredited according to ISO/IEC 17025
  • Service and diagnostics – designed for on-site MAG verification with traceable certification. Regular calibration with SITRANS FM Verificator ensures field accuracy

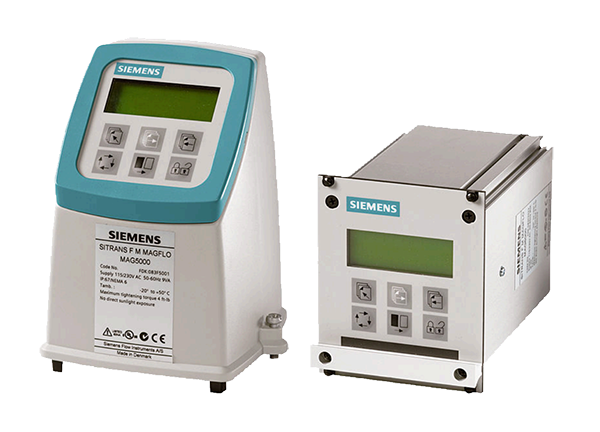

Transmitter MAG 5000/6000 compact version (left) and 19" insert version (right)

Features

  • Superior signal distribution for optimal turndown ratio
  • Digital signal processing with extensive capabilities
  • Automatic reading of SENSORPROM data for easy installation
  • User-configurable operation menu with password protection
  • 3-line, 20-character display available in 11 languages
  • Flow velocity measurement in various units
  • Totalizer for forward, reverse, and net flow, along with additional available information
  • Multiple functional outputs for process control, with minimum configuration including analog, pulse/frequency, and relay output (status, flow direction, limits)
  • Comprehensive self-diagnostics for fault indication and troubleshooting (see SITRANS F M diagnostics)
  • Batch control (MAG 6000 only)
  • Custody transfer approval: MI-001 for cold water, PTB K 7.2, and OE12/C 040 for chilled water
  • MAG 6000 with expansion modules for HART, FOUNDATION Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA, and DP

Applications

  • Water and wastewater management
  • Chemical and pharmaceutical industries
  • Food and beverage industry
  • Energy and utility sector


Design

  • 19" rack system
  • Front panel mounting IP65/NEMA 2
  • Panel mounting IP20/NEMA 1
  • Wall mounting IP66/NEMA 4X

Several options are available for 19" versions, such as:

  • Transmitters mounted in a safe zone for Ex ATEX-approved flow sensors (including barriers)
  • Transmitters with electrode cleaning unit on request


Document links

Learn more about each flow meter below

Siemens flow meters

Siemens MAG 5100W & MAG5000/6000
